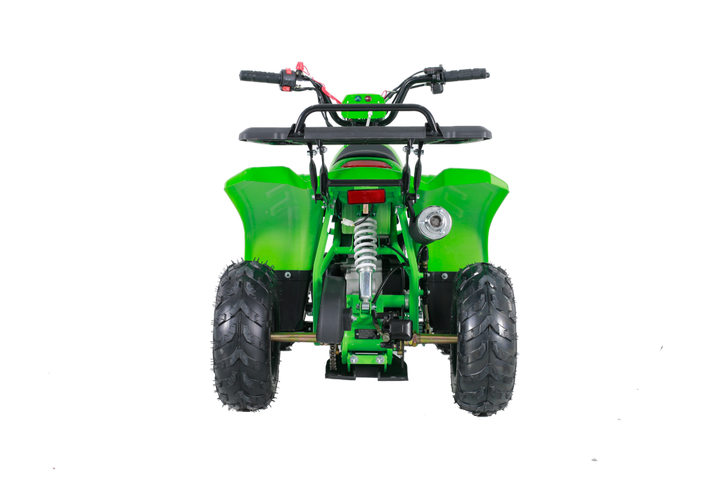

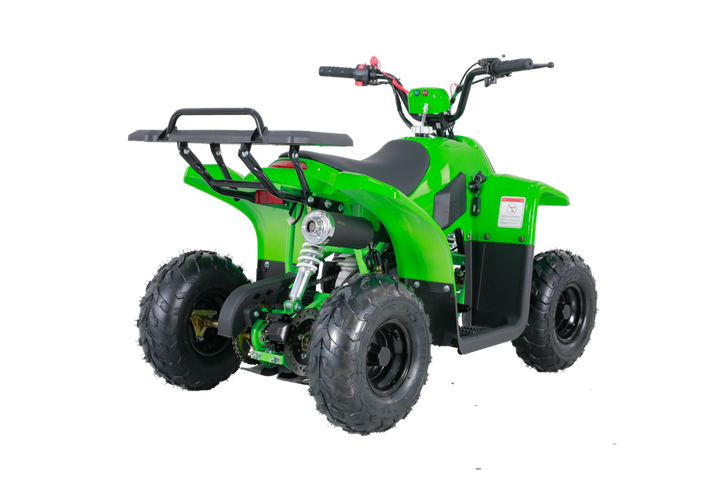

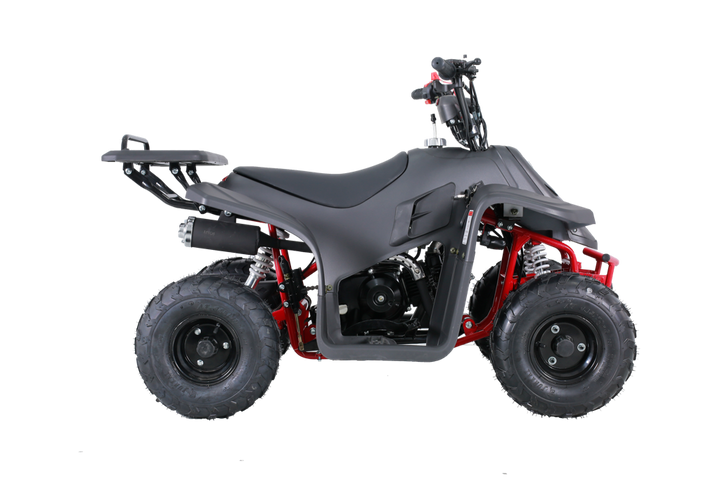

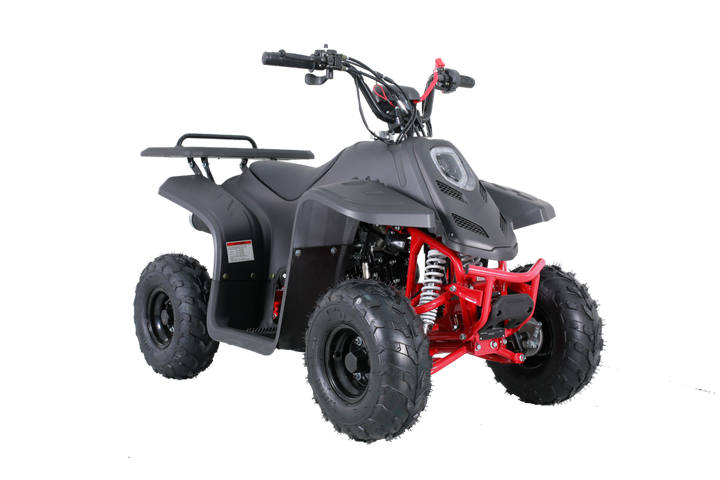

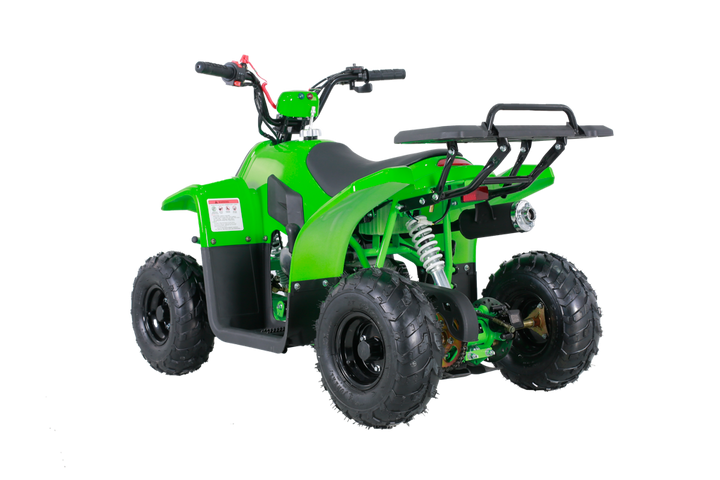

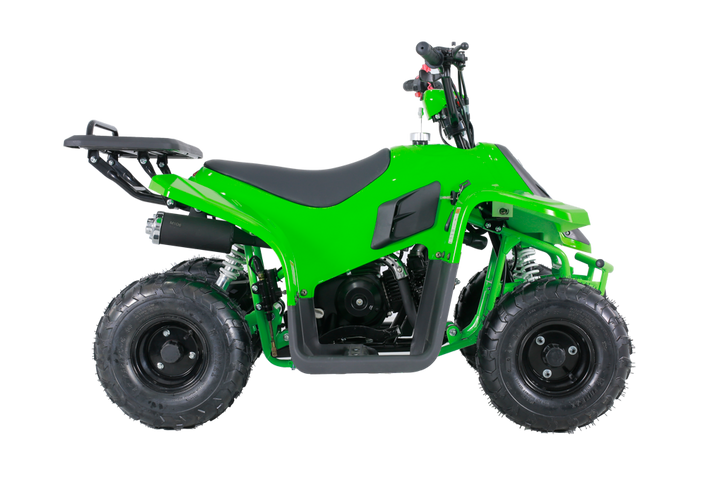

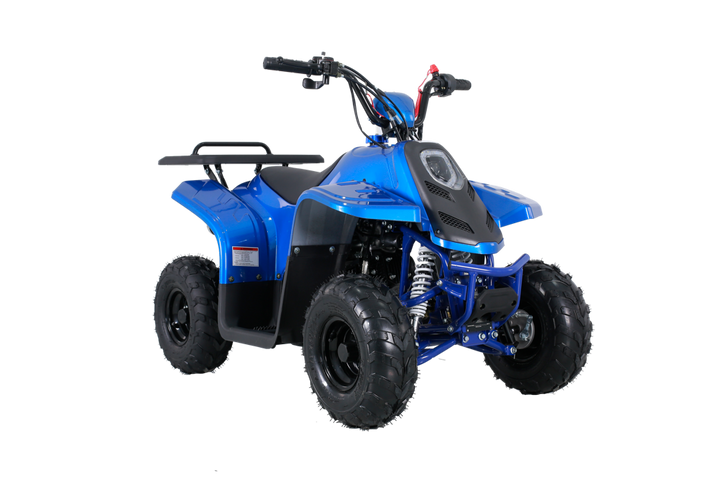

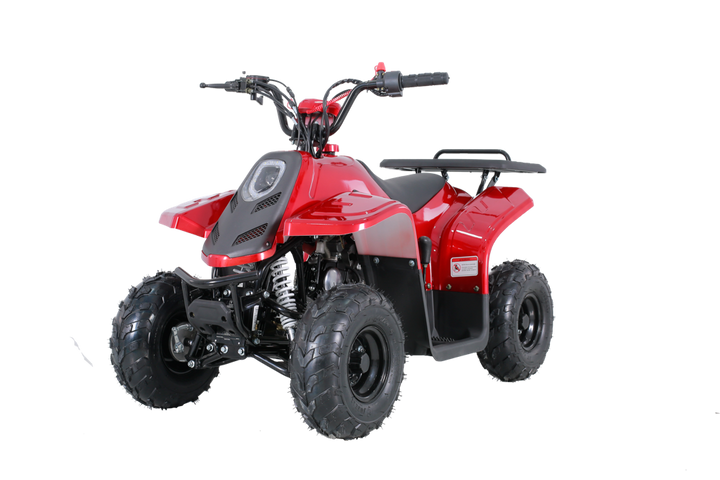

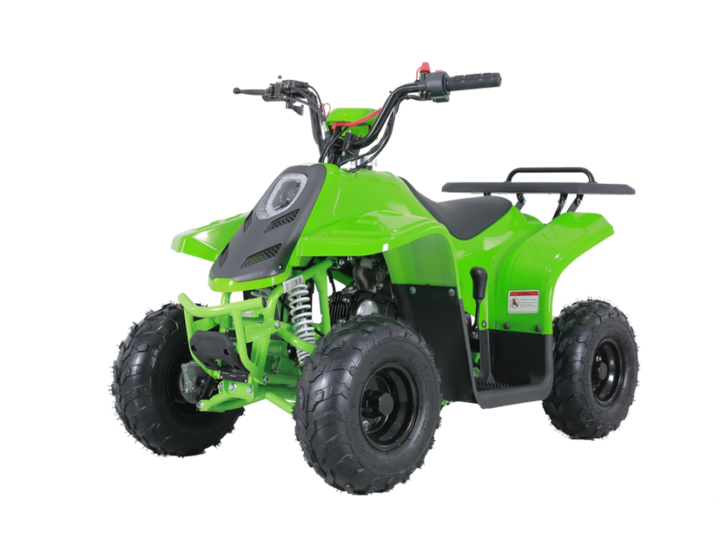

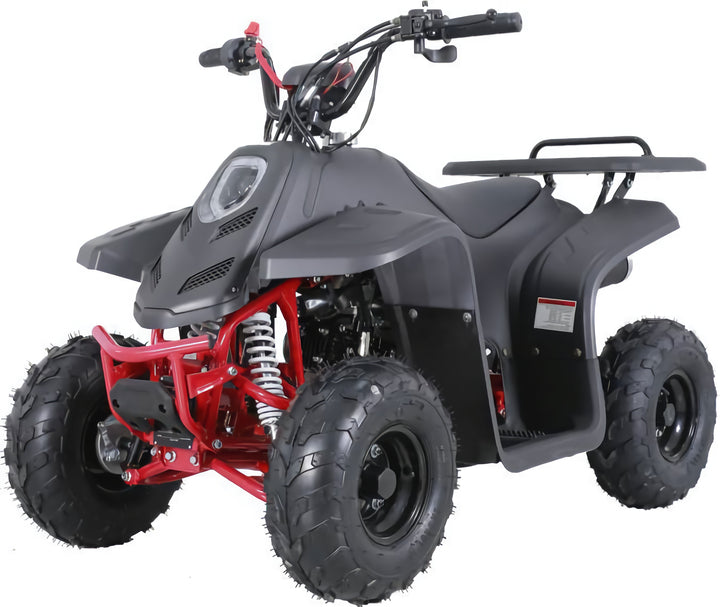

Tao Motor Rock Mini 110cc with Reverse Kids ATV (14.5" Tires, Remote Control Safety Feature for Kids,Electric Start)
SKU: TT110ATV-Rock
Availability :
In Stock
Pre order
Out of stock
Specification
Dimension
Enginedrive train
Other
|
Atv displacement ml 110 |
|
Battery 12V/4Ah |
|
Carb ca only Yes |
|
Climbing ability 18° |
|
Cooling Air-Cooled |
|
Driving wheel Rear Wheels Drive |
|
Engine oil 10w/40 Semi Synthetic 4 Stroke |
|
Engine type Four Stroke, Single Cylinder |
|
Epa Yes |
|
Epa 2nd Yes |
|
Final drive Chain Drive |
|
Front brake Drum |
|
Front suspension Double A-Arm w/ Shock |
|
Front tire 14.5x7-6 |
|
Gas type Premium Only |
|
Hot item Hot Item |
|
Ignition CDI |
|
Kidsyouth adult atv Kids / Youth ATV |
|
Rear brake Disc |
|
Rear suspension Single Arm w/ Shock |
|
Rear tire 14.5x7-6 |
|
Starting system Electric |
|
Tire size Front 14.5" Rear 14.5" |
|
Transmission Automatic |
|
Weight 167.0000 |
| Front Hand Brake | Hub |
| Rear Foot Brake | Disc Brake |
| Tire Front | 145 / 70-6 |
| Tire Rear | 145 / 70-6 |
| Front Suspension | 265mm ± 2 |
| Rear Suspension | 255mm ± 2 |
| Remote Control | Yes |
| Speed Limiter | Yes |
| Engine kill switch | Yes |
| Battery | 12V/5Ah |
| Wheelbase | 863 mm |
| Turning Radius | 55.1 inches |
| Steering Angle | 30 º ± 2 º |
| Front braking force | ≥300N |
| Rear braking force | ≥350N |
Dimension
| G.W | 222.7 LBS |
| N.W | 132.3 LBS |
| Max Loading | 183 LBS |
| Seat Height | 23.23 inches |
| Ground Clearance | 2.76 inches |
| Height | 33.1 Inches |
| Width | 28.7 inches |
| Length | 52.2 inches |
| Handle tube work center width | 23 inches |
| Packaging Iron Frame | 1135 x 685 x 610 |
| Packaging Cartons | 1145 x 695 x 600 |
Enginedrive train
| ENGINE | |
|---|---|
| Engine Type | Automatic, 152FMI 1 + 1 |
| Start Type | Electric Start |
| Transmission | Chain Drive |
| Engine Gear | F-N-R |
| Shift Gear | Hand |
| Engine Capacity | 110ml |
| Max Engine Power | 4.5kw / 7500r /min |
| Max Torque | 6.9 N.m / 6000 (r /min) |
| Ignition | CDI |
| Fuel Tank Capacity | 2.3 L |
| Maximum Speed | 31.1 MPH |
| Exhaust Pollutants (EPA) | CO ≤ 3.8% HC ≤ 800ppm |
| Startup performance | ≤ 15s |
| Side slip | ≤ ± 5m / km |
| Braking distance | 30km /h ≤5.9m |
| Startup acceleration performance | 0-200m - 30km / h ≤18s |
| Beyond acceleration performance | 30km / h 0-200m≤16s |
| Maximum noise | ≤ 80dB |
| Climbing angle | ≥ 12 º |
Other
| EPA | YES |
|---|---|
| CARB | YES |
Description
This ATV is equip with Remote Engine Shut Off Control Child Safety and Speed Limiter for Easy to Learn.
Product Details Overview
 |
Youth Frame Size for Quad
|
 |
Fully Automatic Transmission for Quad
|
 |
Remote & Alarm control
|
 |
ATV Speed Limit Control
|
 |
ATV Camouflage Color Available
|

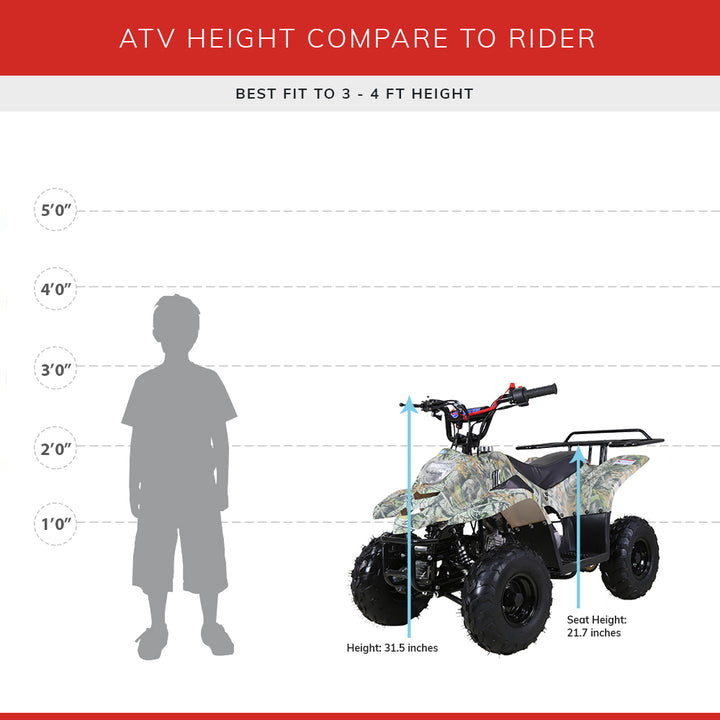

ATV Size Comparison
KIDS
50CC-110CC
ATV 6 inches Rims with
14.5 inches Tires
14.5 inches Tires
- Wheel Base: 31.5 inches
- Height: 31.5 inches
- Seat Height: 21.7 inches
- Recommend Height for: 3 - 4 Ft
KIDS ~ YOUTHS
110CC-125CC
ATV 7 inches Rims with
16 inches Tires
16 inches Tires
- Wheel Base: 33.5 to 34.5 inches
- Height: 36.4 inches
- Seat Height: 24.4 inches
- Recommend Height for: 3.5 - 5 Ft
YOUTHS ~ ADULTS
125CC-200CC
ATV 8 inches Rims with
19/18 inches Tires
19/18 inches Tires
- Wheel Base: 36 to 45 inches
- Height: 37.8 inches
- Seat Height: 26.8 inches
- Recommend Height for: 4 - 5.3 Ft
FULL SIZE ADULT
200CC & UP
ATV 10 inches Rims with
23/22 inches Tires
23/22 inches Tires
- Wheel Base: 44 to 47 inches
- Height: 39.4 inches
- Seat Height: 33.5 inches
- Recommend Height for: 4.5 - 6 Ft
