PRO TT Jeep 110cc Go Kart

Tao Motor Jeep 110cc Go Kart (Fully Auto w-Reverse, Honda CG Series Clone 4 Stroke Engine, Adjustable Seat, Speed Limiter)

SKU: GKTTJEEP110
No reviews
$2,179.95 $999.95 SAVE 54%
Availability : In Stock Pre order Out of stock
Add to Wishlist
Ask a Question
Categories: 110cc Go Karts, All Products, Go Karts, Go Karts Tab Listing, Kids Go Kart, Products, Sale, Tab Listing
Tags: 110cc Go Karts, All Products, Go Karts, Go Karts Tab Listing, Kids Go Kart, Sale, Tab Listing

Specification
Battery

12V/9Ah
Carb (ca only) 2nd

Yes
Carb ca only

Not for California
Cooling

Air-Cooled
Decals

Yes
Driving wheel

Rear Wheel Drive
Engine oil

15w/40 Semi Synthetic 4 Stroke
Engine type

CVT, Four Stroke, Single Cylinder
Epa

Yes
Epa 2nd

Yes
Final drive

Chain Drive
Front brake

Disc
Front suspension

Double Arm w/ Shock
Gas type

Premium Only
Gear oil

85W/40
Go kart displacement ml

110
Hot item

Hot Item
Ignition

CDI
Kidsyouth adult go kart

Youth Go Kart
Rear brake

Disc
Rear suspension

Single Arm w/ Shock
Rear tire

16X8-7
Starting system

Electric
Transmission

Automatic w/ Reverse
Weight

200.0000

Front Foot Brake Hydraulic Disc
Rear Foot Brake Hydraulic Disc
Tire Front 16x8-7
Tire Rear 16x8-7
Suspension Front(inch) 14.15
Suspension Rear(inch) 14.15
remote control(Yes/No) No
Speed Limiter(Yes/No) No
Engine kill switch(Yes/No) Yes

Dimension

Battery 12V/5Ah
G.W.(lbs) 385
N.W.(lbs) 320
Max Loading(lbs) 220.46
Overall Size(inch) 74.81x49.22x51.18
Carton Size(inch) 66.54x45.28x23.23

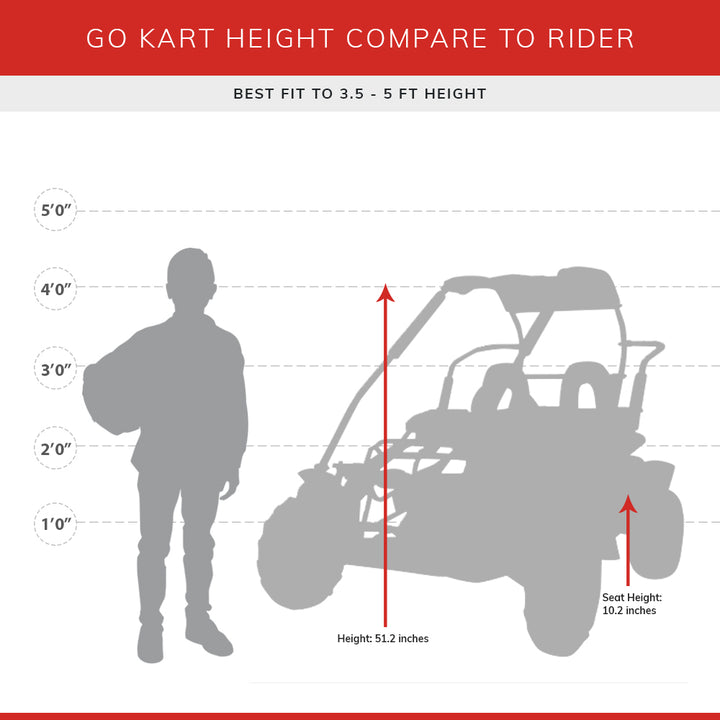

Seat Height(inch) 11.8
Ground Clearance(inch) 5.12

Enginedrive train

Engine Type 110CC, Air cooled, 4-stroke, 1-cylinder, Automatic with reverse
Start Type Electric start
Transmission Chain Drive
Max Torque 6.5N.m/5000-5500r/min
Engine Gear

D-N-R   (Fully Automatic with reverse)
Shift Gear Hand
Wheelbase(inch) 55.12
Ignition CDI
Fuel Capacity(L) 3.5

Other

EPA YES
CARB YES
Description

Go Kart Product Details Overview

High Quality Roll Cage

High Quality Steel Frame with Full Body Roll Cage
Using high standard MIG welding for strongest body frame, full body roll cage and fully welded floor board



Honda GY6 Clone 4 Stroke Engine

Honda GY6 Clone 4 Stroke Engine
Powerful Honda CG Series 4 stroke scooter engine comes standard with two overhead valves. The engine was originally manufactured in 50cc, 125cc, and 150cc engine sizes and was found in the Honda Elite and Spacey line of motor scooters. With various sources of this engine in both Honda products and newer Asian imports there are a vast amount of replacement parts, modifications, and performance parts available in the market.



Adjustable Racing Seat

Adjustable racing seat with racing harness belt
The adjustable slider racing seat gives maximum comfort for different size rider and the racing harness belt insure the rider's safety during riding.



Deluxe Interior

Deluxe Interior
Equipped with Roof cover, light switch, key ignition, easy to reach shift knob for convenience for the rider.



Double Front Double A-arm

Handling Upgrades
This KB37 110cc Go Kart come with stagger wheels setup, Single front A-arm and Double rear A-arm to provide better handling and turning angle.



Go Kart Distance Backseat to Padel

Distance from Seat back to Pedals and Weight Capacity
This Go Kart has adjustable distance between 23 Inch to 29 Inch from Seat Back to Pedals. Weigh Capacity is : 300lbs

Kart Size Comparison

Kids Go Kart

product1
110cc Go Kart
  • Wheel Base: 52 to 56 inches
  • Horse Power : 6.5+
  • Max Speed: 5 to 35+ MPH
  • Distance from Pedal to Seat Back: 23 to 29 inches

Kids & Youth Go Kart

product2
150cc Go Kart
  • Wheel Base: 62 to 68 inches
  • Horse Power : 10.0+
  • Max Speed: 5 to 35+ MPH
  • Distance from Pedal to Seat Back: 31.5 to 43 inches

Youth & Adult Go Kart

product3
200CC Go Kart
  • Wheel Base: 62 to 68 inches
  • Horse Power : 15+
  • Max Speed: 5 to 35+ MPH
  • Distance from Pedal to Seat Back: 2 to 4 inches Longer than Regular Type Go kart

Full Size Adult Go Kart

product4
250cc Go Kart
  • Wheel Base: 62 to 68 inches
  • Horse Power : 20+
  • Max Speed: 5 to 35+ MPH
  • Distance from Pedal to Seat Back: 41 to 48 inches
